Windows

With MSVC you don't really need to link anything since linker directives in the translation unit that includes vd_fw.h are defined, so that the appropriate libraries and subsystem are used. Additionally, several core libraries are dynamically loaded in vd_fw_init. The only library required during compilation is kernel32.lib. For reference, here are the libraries this library tries to load during vd_fw_init:

1. User32.dll
2. OpenGL32.dll
3. Dwmapi.dll
4. Gdi32.dll
5. uxtheme.dll
6. shell32.dll
7. winmm.dll
8. SetupAPI.dll
9. Advapi32.dll
10. xinput1_4.dll
11. xinput1_3.dll
12. xinput9_1_0.dll

This library tries as much as possible to reduce the amount of code brought in with the (notoriously large) Windows includes. This is done by manually declaring enumerations, preprocessor macros, function signatures, and structures right inside the implementation part of the library. This looks like this:

typedef struct VdFwtagRGBQUAD {
    VdFwBYTE    rgbBlue;
    VdFwBYTE    rgbGreen;
    VdFwBYTE    rgbRed;
    VdFwBYTE    rgbReserved;
} VdFwRGBQUAD;

typedef struct VdFwtagBITMAPINFO {
    VdFwBITMAPINFOHEADER    bmiHeader;
    VdFwRGBQUAD             bmiColors[1];
} VdFwBITMAPINFO, * VdFwLPBITMAPINFO, * VdFwPBITMAPINFO;

#define VD_FW_PROC_ChoosePixelFormat(name) int name(VdFwHDC hdc, const VdFwPIXELFORMATDESCRIPTOR *ppfd)
typedef VD_FW_PROC_ChoosePixelFormat(VdFwProcChoosePixelFormat);
static VdFwProcChoosePixelFormat *VdFwChoosePixelFormat;

#define VD_FW_PROC_CreateBitmap(name) VdFwHBITMAP name(int nWidth, int nHeight, VdFwUINT nPlanes, VdFwUINT nBitCount, const void* lpBits)
typedef VD_FW_PROC_CreateBitmap(VdFwProcCreateBitmap);
static VdFwProcCreateBitmap *VdFwCreateBitmap;


The relevant functions are then loaded when you call vd_fw_init:

HMODULE m             = LoadLibraryA("Gdi32.dll");
VdFwChoosePixelFormat     =     (VdFwProcChoosePixelFormat*)GetProcAddress(m, "ChoosePixelFormat");
VdFwCreateBitmap          =          (VdFwProcCreateBitmap*)GetProcAddress(m, "CreateBitmap");


Note that all platform specific functions/typedefs/structs are prefixed with 'VdFw' or 'VD_FW_' so as not to induce collisions in cases where you need to include Windows functionality yourself.

To set the subsystem of the application:

• Windows: #define VD_FW_WIN32_SUBSYSTEM VD_FW_WIN32_SUBSYSTEM_WINDOWS
• Console: #define VD_FW_WIN32_SUBSYSTEM VD_FW_WIN32_SUBSYSTEM_CONSOLE

If you're on the Windows subsystem, but would still like a console for debugging purposes, this can be done by setting VdFwInitInfo::gl_options::debug_on = 1 when calling vd_fw_init.
This will allocate a console and set-up the relevant gl debug callback for you.

It's highly recommended to #define VD_FW_NO_CRT 1 so that the CRT is removed when linking. This can reduce the final executable size by a factor of 10 (for small applications).

If you'd like to define options by yourself, #define VD_FW_WIN32_NO_LINKER_COMMENTS before including the implementation.

MacOS

For MacOS, it's a bit different. with clang, you must link several frameworks (via -framework framework_name). Additionally, -x objective-c must be used since the Mac APIs use Objective-C.

1. pthread (compiler flag)
2. Cocoa
3. Metal
4. QuartzCore
5. CoreGraphics
6. IOSurface
7. IOKit
8. Foundation
9. OpenGL

OpenGL on MacOS is deprecated, and including it will throw a ton of warnings about each function. Its maximum supported version of OpenGL is 4.1.

To disable those warnings, you can create the following header file and use it before and after including vd_fw.h:

#ifndef DISABLE_CLANG_DEPRECATIONS_H1
#define DISABLE_CLANG_DEPRECATIONS_H1
#if defined(__clang__)
#pragma clang diagnostic push
#pragma clang diagnostic ignored "-Wdeprecated-declarations"
#endif // defined(__clang__)
#else
#if defined(__clang__)
#pragma clang diagnostic pop
#endif // defined(__clang__)
#endif // DISABLE_CLANG_DEPRECATIONS_H1


Platforms

Due to platform limitations, platform-specific APIs and frameworks, vd_fw.h will never have support for some platforms. One example is Android, where Java is required.

Though, I'm still thinking about how this can be done easily, so I will leave the possibility open.

Revisions

Attributions

• CookedNick
  For the render thread with Win32 example in jai
• idrassi
  For the ported jai code for Win32 example
• melak47
  For the borderless window with Win32 example
• TheoBendixson
  For his Handmade Mac platform layer
• Ofek
  For the display monitor enumeration code sample

Main Loop

Let's look at the main loop.

#define VD_FW_NO_CRT 1                                       // Disable CRT, this is highly recommended,
                                                             // if you know what you're doing.
#define VD_FW_WIN32_SUBSYSTEM VD_FW_WIN32_SUBSYSTEM_WINDOWS  // Disable console (Windows)
#include "vd_fw.h"

int main(int argc, char const *argv[])
{
    vd_fw_init(NULL);                                        // Initialize library
    vd_fw_set_vsync_on(1);                                   // Enable VSYNC

    while (vd_fw_running()) {                                // Check if the window is closed

        if (vd_fw_close_requested()) {                       // Close the window if the
            vd_fw_quit();                                    // user requested it
        }

        int w, h;
        vd_fw_get_size(&w, &h);                              // Get window size, in pixels.

        glViewport(0, 0, w, h);                              // Setup viewport
        glClearColor(0.5f, 0.3f, 0.2f, 1.0f);                // Select clear color
        glClear(GL_COLOR_BUFFER_BIT);                        // Clear

        vd_fw_swap_buffers();                                // Swap buffers
    }

    return 0;
}

#define VD_FW_IMPL                                           // Include implementation
#include "vd_fw.h"

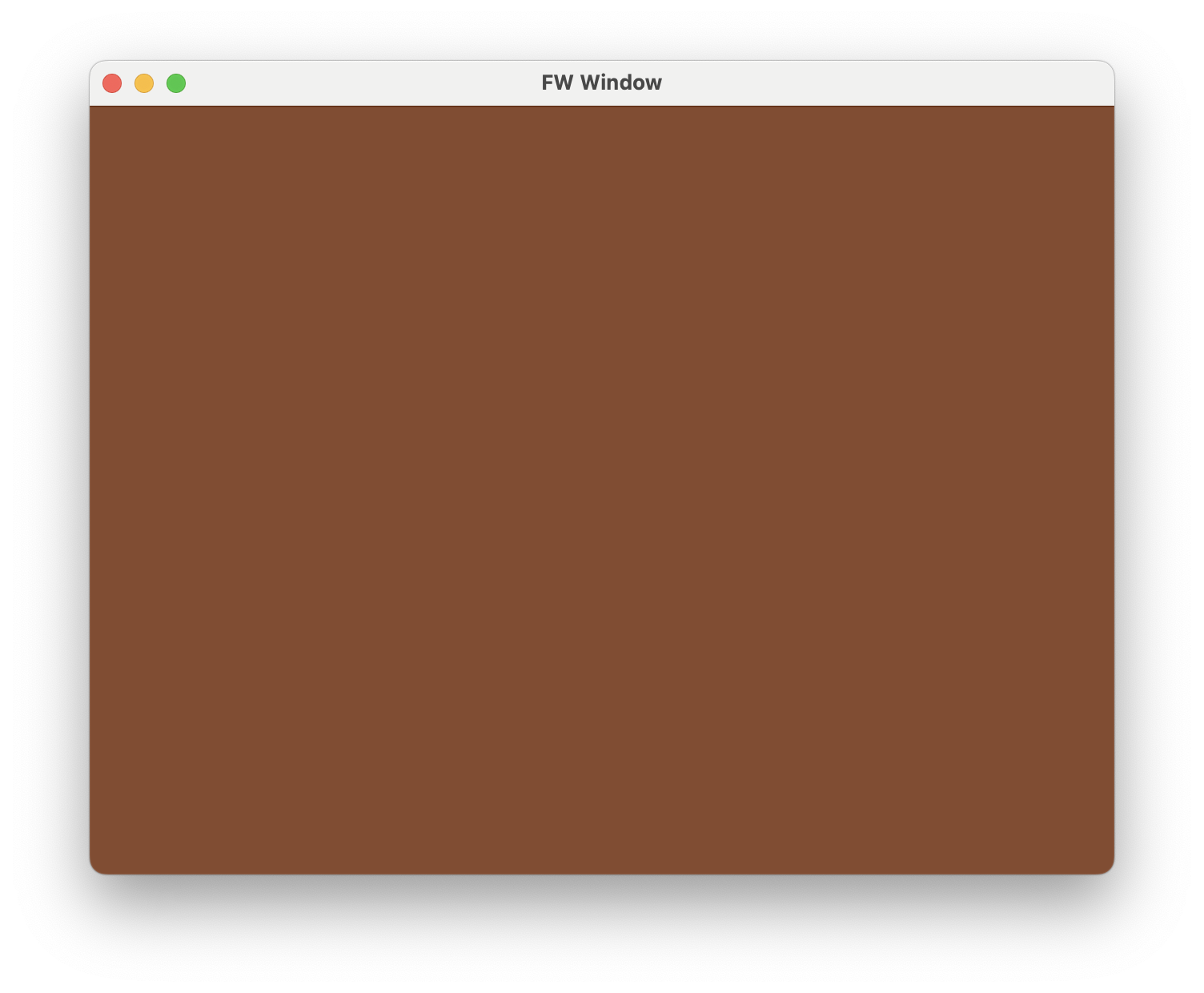

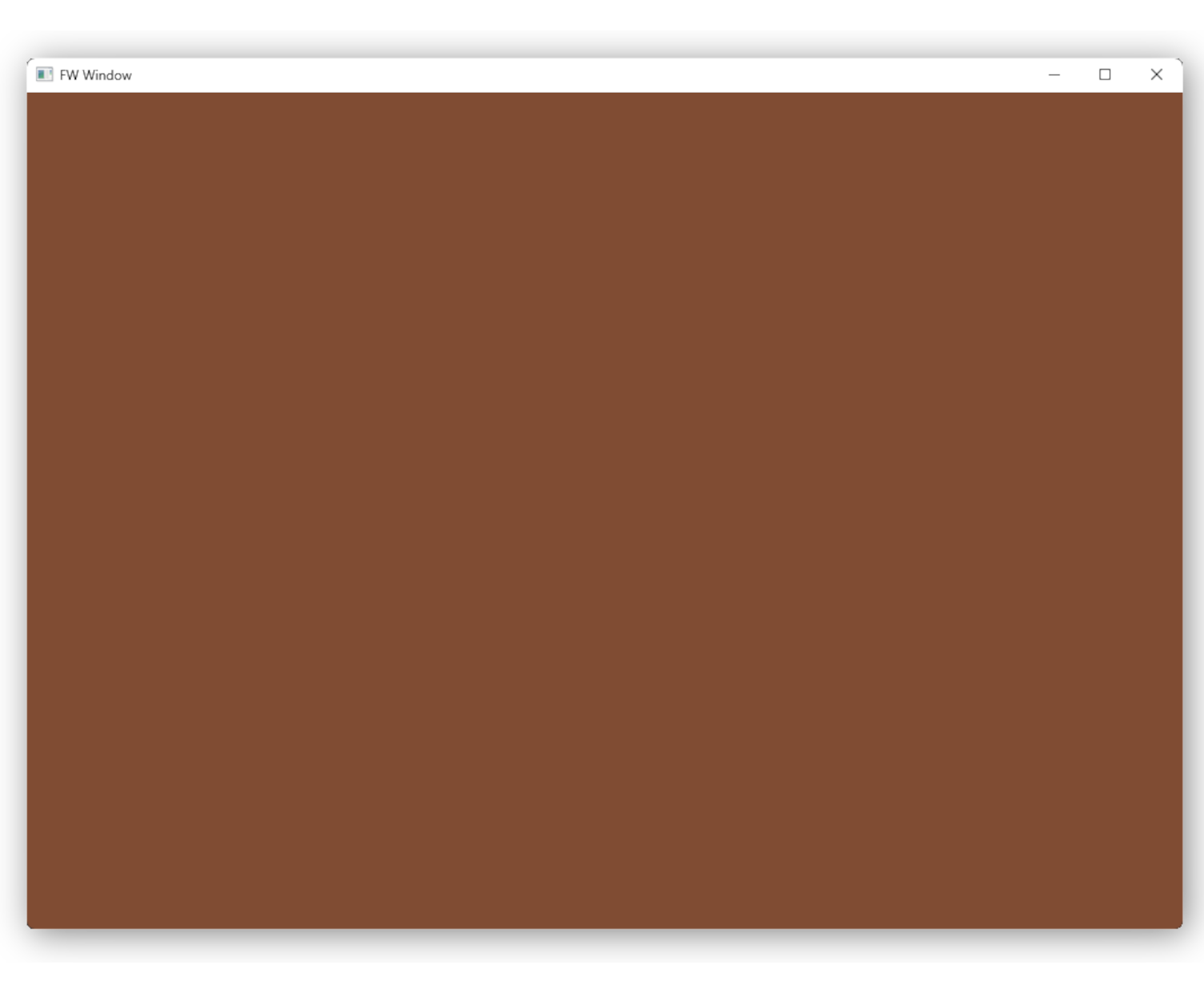

This will create a window, that can be moved and resized.

Note that resizing or moving the window will never pause the render loop, with OpenGL or any other API.

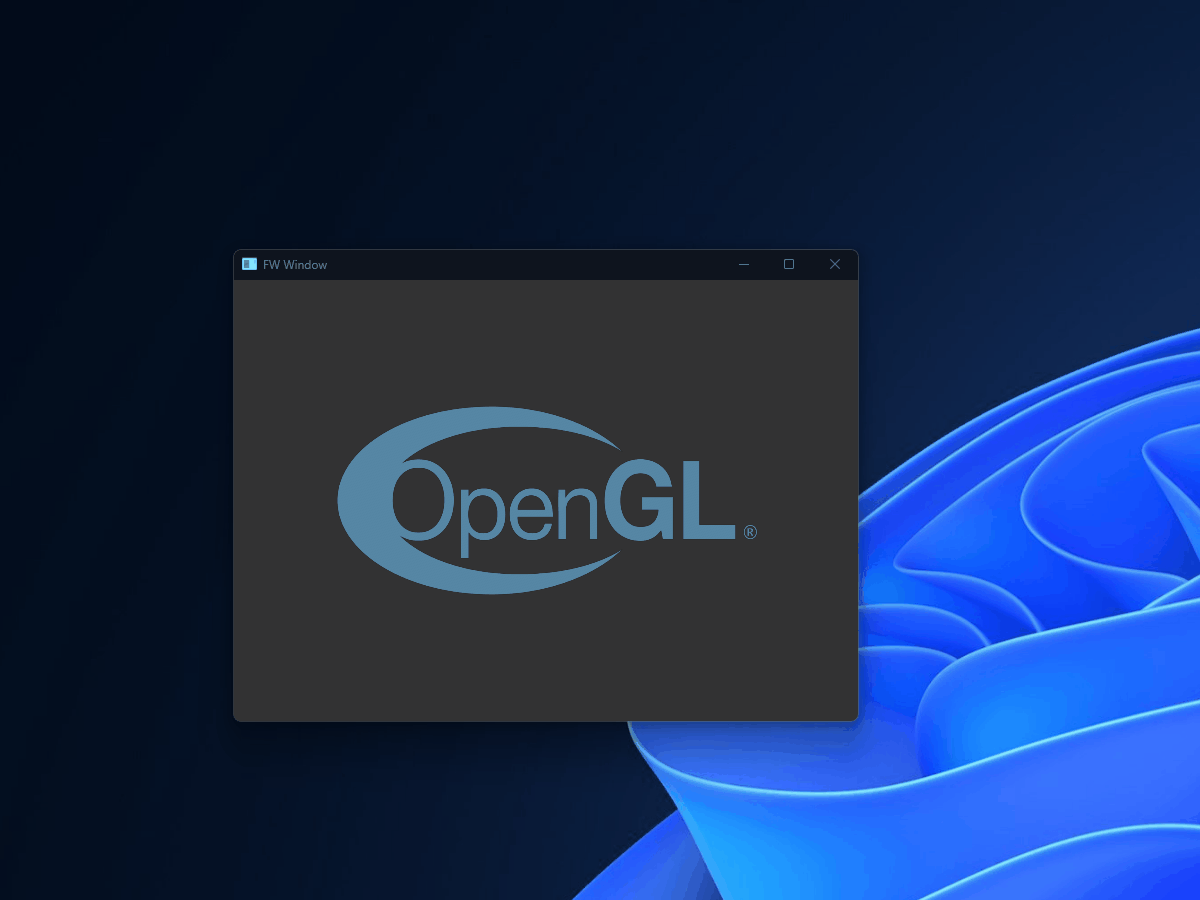

Choose OpenGL Version

To specify the OpenGL version, create a VdFwInitInfo struct, populate the VdFwInitInfo::gl::version member, and pass it to vd_fw_init.

VdFwInitInfo init_info = {};
init_info.gl.version = VD_FW_GL_VERSION_4_5; // Set OpenGL Version
vd_fw_init(&init_info);


For reference, here's all of the possible versions:

typedef enum {
    VD_FW_GL_VERSION_BASIC = 0,
    VD_FW_GL_VERSION_1_0   = 1,
    VD_FW_GL_VERSION_1_2   = 12,
    VD_FW_GL_VERSION_1_3   = 13,
    VD_FW_GL_VERSION_1_4   = 14,
    VD_FW_GL_VERSION_1_5   = 15,
    VD_FW_GL_VERSION_2_0   = 20,
    VD_FW_GL_VERSION_2_1   = 21,
    VD_FW_GL_VERSION_3_0   = 30,
    VD_FW_GL_VERSION_3_1   = 31,
    VD_FW_GL_VERSION_3_2   = 32,
    VD_FW_GL_VERSION_3_3   = 33,
    VD_FW_GL_VERSION_4_0   = 40,
    VD_FW_GL_VERSION_4_1   = 41,
    VD_FW_GL_VERSION_4_2   = 42,
    VD_FW_GL_VERSION_4_3   = 43,
    VD_FW_GL_VERSION_4_4   = 44,
    VD_FW_GL_VERSION_4_5   = 45,
    VD_FW_GL_VERSION_4_6   = 46,
} VdFwGlVersion;


Create a Borderless Window

To create a borderless window, create a VdFwInitInfo struct, set VdFwInitInfo::window_options::borderless to 1, and pass it to vd_fw_init.

VdFwInitInfo init_info = {};
init_info.window_options.borderless = 1;
vd_fw_init(&init_info);


This will create a borderless window, that can be moved (by dragging any part of the window), and resized.

Create a Shader Program

Let's create a simple 2D rectangle application.

We'll create some in-source shaders, and compile them, as we would in any OpenGL application. If you'd like to follow along, here are the shaders we'll be using:

#define VERTEX_SOURCE \
"#version 330 core                                                                                                 \n" \
"layout (location = 0) in vec2 aPos;                                                                               \n" \
"                                                                                                                  \n" \
"uniform vec2 rect_off;                                                                                            \n" \
"uniform vec2 rect_size;                                                                                           \n" \
"uniform mat4 projection;                                                                                          \n" \
"                                                                                                                  \n" \
"                                                                                                                  \n" \
"void main()                                                                                                       \n" \
"{                                                                                                                 \n" \
"    gl_Position = projection * vec4(aPos * rect_size + rect_off, 0.0, 1.0f);                                      \n" \
"}                                                                                                                 \n" \

#define FRAGMENT_SOURCE \
"#version 330 core                                                                                                 \n" \
"out vec4 FragColor;                                                                                               \n" \
"                                                                                                                  \n" \
"uniform vec4 rect_color;                                                                                          \n" \
"                                                                                                                  \n" \
"void main()                                                                                                       \n" \
"{                                                                                                                 \n" \
"    FragColor = rect_color;                                                                                       \n" \
"}                                                                                                                 \n" \


And the typical OpenGL shader compilation code:

const char *vertex_shader_source = VERTEX_SOURCE;
const char *fragment_shader_source = FRAGMENT_SOURCE;

// Compile shaders
GLuint vertex_shader = glCreateShader(GL_VERTEX_SHADER);
glShaderSource(vertex_shader, 1, &vertex_shader_source, 0);
glCompileShader(vertex_shader);

GLuint fragment_shader = glCreateShader(GL_FRAGMENT_SHADER);
glShaderSource(fragment_shader, 1, &fragment_shader_source, 0);
glCompileShader(fragment_shader);

GLuint program = glCreateProgram();
glAttachShader(program, vertex_shader);
glAttachShader(program, fragment_shader);
glLinkProgram(program);


In most tutorials, you'll be prompted to do error checking by doing glGetShaderiv, then glGetShaderInfoLog and printing it out...

This library provides a convenience function (and more) to do that, which will also log the errors:

GLuint vertex_shader   = vd_fw_compile_shader(GL_VERTEX_SHADER,   VERTEX_SOURCE);
GLuint fragment_shader = vd_fw_compile_shader(GL_FRAGMENT_SHADER, FRAGMENT_SOURCE);


For error logging, make sure to set VdFwInitInfo::gl::debug_on to 1 when initializing the library. Here's the vd_fw_init call we'll be using for the rest of these tutorials:

vd_fw_init(& (VdFwInitInfo) {
    .gl = {
        .version = VD_FW_GL_VERSION_3_3,
        .debug_on = 1,
    },
    .window_options = {
        .borderless = 1,
    }
});


Draw a Rectangle

Continuing from the previous section, we create a vertex buffer for a 2d rectangle:

float rect_vertices[] = {
     0.0f,  0.0f,
    +1.0f,  0.0f,
     0.0f, +1.0f,
    +1.0f, +1.0f
};

unsigned int VBO, VAO;
glGenVertexArrays(1, &VAO);
glGenBuffers(1, &VBO);
glBindVertexArray(VAO);
glBindBuffer(GL_ARRAY_BUFFER, VBO);
glBufferData(GL_ARRAY_BUFFER, sizeof(rect_vertices), rect_vertices, GL_STATIC_DRAW);
glVertexAttribPointer(0, 2, GL_FLOAT, GL_FALSE, 2 * sizeof(float), (void*)0);
glEnableVertexAttribArray(0);


And now for drawing a rectangle.

We'll use orthographic projection. vd_fw.h provides a simple utility function to compute it: vd_fw_u_ortho

glUseProgram(program);
glBindVertexArray(VAO);

{
    float projection[16];
    vd_fw_u_ortho(0.f, (float)w, (float)h, 0.f, -1.f, 1.f, projection);
    glUniformMatrix4fv(glGetUniformLocation(program, "projection"), 1, GL_FALSE, projection);
}


To test that the coordinate transformation is working, we'll map the top left of the rectangle to the mouse. To get the mouse position & buttons, use vd_fw_get_mouse_state or vd_fw_get_mouse_statef:

float mx, my;
vd_fw_get_mouse_statef(&mx, &my);

glUniform4f(glGetUniformLocation(program, "rect_color"), 1.f, 0.f, 0.f, 1.f);
glUniform2f(glGetUniformLocation(program, "rect_size"), 40.f, 40.f);
glUniform2f(glGetUniformLocation(program, "rect_off"), mx, my);
glDrawArrays(GL_TRIANGLE_STRIP, 0, 4);

glUseProgram(0);
glBindVertexArray(0);


Set the Drag Area

Let's draw a simple window frame using our rectangle "renderer":

glUniform4f(glGetUniformLocation(program, "rect_color"), 0.2f, 0.2f, 0.2f, 1.f);
glUniform2f(glGetUniformLocation(program, "rect_size"), (float)w, 30.f);
glUniform2f(glGetUniformLocation(program, "rect_off"), 0.f, 0.f);
glDrawArrays(GL_TRIANGLE_STRIP, 0, 4);


In a borderless window, there is no specified non-client area. So to allow the user to drag the window only from a specific place, we'll use vd_fw_set_ncrects.

int draggable_rect[4] = {
    0,  // left
    0,  // top
    w,  // right
    30, // bottom
};
vd_fw_set_ncrects(draggable_rect, 0, 0);


Et voila!

Now, for the 2 last parameters to vd_fw_set_ncrects:

• count: Number of excluded rects
• rects: Pointer to array of count rects

Let's draw a red 'close' button in our title bar, and if the mouse is over it, darken it:

float button_color[4] = {1.0f, 0.0f, 0.0f, 1.0f};
int mouse_inside_close_button =
    (mx > ((float)w - 30.f)) &&
    (my > (0.f) && my < (30.f));

if (mouse_inside_close_button) {
    button_color[0] = 0.7f;
    button_color[1] = 0.0f;
    button_color[2] = 0.0f;
    button_color[3] = 1.0f;
}

glUniform4f(glGetUniformLocation(program, "rect_color"), button_color[0],
                                                         button_color[1],
                                                         button_color[2],
                                                         button_color[3]);
glUniform2f(glGetUniformLocation(program, "rect_size"), 30.f, 30.f);
glUniform2f(glGetUniformLocation(program, "rect_off"), (float)w - 30.f, 0.f);
glDrawArrays(GL_TRIANGLE_STRIP, 0, 4);

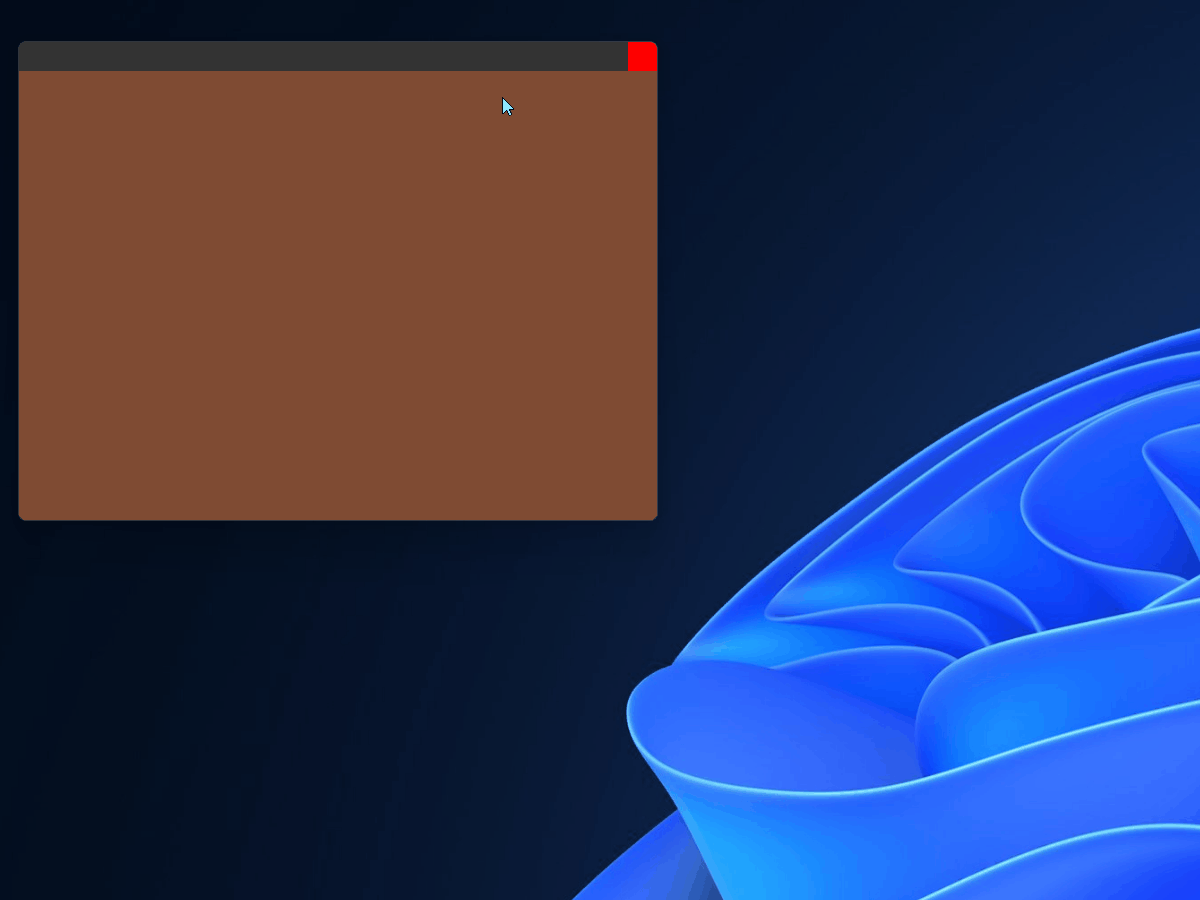

As you can see, we can still drag the window even if the mouse is on the button.

To fix that, we have to update our call to vd_fw_set_ncrects:

int draggable_rect[4] = {
    0,  // left
    0,  // top
    w,  // right
    30, // bottom
};

int exclude_rects[1][4] = {
    {
        w - 30, // left
        0,      // top
        w,      // right
        30,     // bottom
    }
};
vd_fw_set_ncrects(draggable_rect, 1, exclude_rects);


The code is straightforward; we exclude the exact position of our red button.

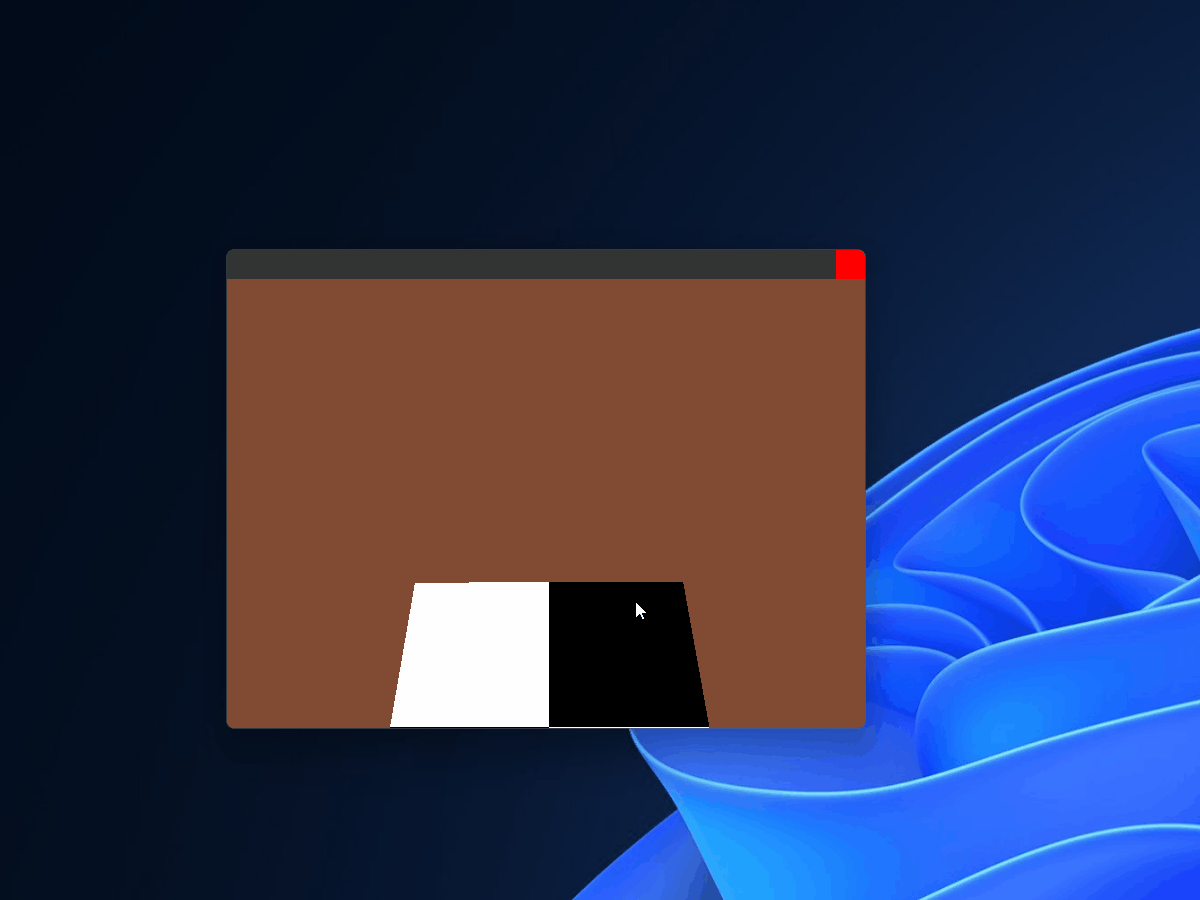

Draw a Cube

Let's render some 3D geometry. For this, we'll need separate shaders; if you're following the tutorial in order, here they are:

#define VERTEX_SOURCE3D \
"#version 330 core                                        \n" \
"layout (location = 0) in vec3 aPos;                      \n" \
"layout (location = 1) in vec2 aTexCoord;                 \n" \
"                                                         \n" \
"out vec2 TexCoord;                                       \n" \
"                                                         \n" \
"uniform mat4 projection;                                 \n" \
"uniform mat4 view;                                       \n" \
"                                                         \n" \
"void main()                                              \n" \
"{                                                        \n" \
"    gl_Position = projection * view * vec4(aPos, 1.0f);  \n" \
"    TexCoord = vec2(aTexCoord.x, 1.0 - aTexCoord.y);     \n" \
"}                                                        \n" \

#define FRAGMENT_SOURCE3D \
"#version 330 core                                        \n" \
"out vec4 FragColor;                                      \n" \
"                                                         \n" \
"in vec2 TexCoord;                                        \n" \
"                                                         \n" \
"uniform sampler2D texture1;                              \n" \
"                                                         \n" \
"void main()                                              \n" \
"{                                                        \n" \
"    FragColor = texture(texture1, TexCoord);             \n" \
"}                                                        \n" \


We'll also create a 3d cube, and a checkerboard texture:

float vertices3d[] = {
    -0.5f, -0.5f, -0.5f,  0.0f, 0.0f,
     0.5f, -0.5f, -0.5f,  1.0f, 0.0f,
     0.5f,  0.5f, -0.5f,  1.0f, 1.0f,
     0.5f,  0.5f, -0.5f,  1.0f, 1.0f,
    -0.5f,  0.5f, -0.5f,  0.0f, 1.0f,
    -0.5f, -0.5f, -0.5f,  0.0f, 0.0f,

    -0.5f, -0.5f,  0.5f,  0.0f, 0.0f,
     0.5f, -0.5f,  0.5f,  1.0f, 0.0f,
     0.5f,  0.5f,  0.5f,  1.0f, 1.0f,
     0.5f,  0.5f,  0.5f,  1.0f, 1.0f,
    -0.5f,  0.5f,  0.5f,  0.0f, 1.0f,
    -0.5f, -0.5f,  0.5f,  0.0f, 0.0f,

    -0.5f,  0.5f,  0.5f,  1.0f, 0.0f,
    -0.5f,  0.5f, -0.5f,  1.0f, 1.0f,
    -0.5f, -0.5f, -0.5f,  0.0f, 1.0f,
    -0.5f, -0.5f, -0.5f,  0.0f, 1.0f,
    -0.5f, -0.5f,  0.5f,  0.0f, 0.0f,
    -0.5f,  0.5f,  0.5f,  1.0f, 0.0f,

     0.5f,  0.5f,  0.5f,  1.0f, 0.0f,
     0.5f,  0.5f, -0.5f,  1.0f, 1.0f,
     0.5f, -0.5f, -0.5f,  0.0f, 1.0f,
     0.5f, -0.5f, -0.5f,  0.0f, 1.0f,
     0.5f, -0.5f,  0.5f,  0.0f, 0.0f,
     0.5f,  0.5f,  0.5f,  1.0f, 0.0f,

    -0.5f, -0.5f, -0.5f,  0.0f, 1.0f,
     0.5f, -0.5f, -0.5f,  1.0f, 1.0f,
     0.5f, -0.5f,  0.5f,  1.0f, 0.0f,
     0.5f, -0.5f,  0.5f,  1.0f, 0.0f,
    -0.5f, -0.5f,  0.5f,  0.0f, 0.0f,
    -0.5f, -0.5f, -0.5f,  0.0f, 1.0f,

    -0.5f,  0.5f, -0.5f,  0.0f, 1.0f,
     0.5f,  0.5f, -0.5f,  1.0f, 1.0f,
     0.5f,  0.5f,  0.5f,  1.0f, 0.0f,
     0.5f,  0.5f,  0.5f,  1.0f, 0.0f,
    -0.5f,  0.5f,  0.5f,  0.0f, 0.0f,
    -0.5f,  0.5f, -0.5f,  0.0f, 1.0f
};

unsigned int VBO3D, VAO3D;
glGenVertexArrays(1, &VAO3D);
glGenBuffers(1, &VBO3D);
glBindVertexArray(VAO3D);
glBindBuffer(GL_ARRAY_BUFFER, VBO3D);
glBufferData(GL_ARRAY_BUFFER, sizeof(vertices3d), vertices3d, GL_STATIC_DRAW);
// position attribute
glVertexAttribPointer(0, 3, GL_FLOAT, GL_FALSE, 5 * sizeof(float), (void*)0);
glEnableVertexAttribArray(0);
// texture coord attribute
glVertexAttribPointer(1, 2, GL_FLOAT, GL_FALSE, 5 * sizeof(float), (void*)(3 * sizeof(float)));
glEnableVertexAttribArray(1);

unsigned int checkerboard[] = {
    0xFFFFFFFF, 0xFF000000,
    0xFF000000, 0xFFFFFFFF
};

GLuint texture;
glGenTextures(1, &texture);
glBindTexture(GL_TEXTURE_2D, texture);
glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_WRAP_S, GL_REPEAT);
glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_WRAP_T, GL_REPEAT);
glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MIN_FILTER, GL_NEAREST);
glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MAG_FILTER, GL_NEAREST);
glTexImage2D(GL_TEXTURE_2D, 0, GL_RGBA8, 2, 2, 0, GL_RGBA, GL_UNSIGNED_BYTE, checkerboard);
glGenerateMipmap(GL_TEXTURE_2D);


Since we'll be rendering both 3D and 2D, we'll need to make sure GL_DEPTH_TEST is only enabled for the 3D part of our rendering:

glDisable(GL_DEPTH_TEST);
glUseProgram(program);
glBindVertexArray(VAO);

float projection[16];
vd_fw_u_ortho(0.f, (float)w, (float)h, 0.f, -1.f, 1.f, projection);
glUniformMatrix4fv(glGetUniformLocation(program, "projection"), 1, GL_FALSE, projection);
// ... Rest of 2D rendering code

glEnable(GL_DEPTH_TEST);
// 3D rendering code


Before our main loop, we're also going to add some variables for the camera:

float camera_position[3] = {0.f, 0.f, -2.f};
float camera_yaw   = 0.f;
float camera_pitch = 30.f;
float deg2rad = 3.14159265359f / 180.f;
float camera_speed = 2.f;


Now for rendering the cube depending on camera position & rotation:

glEnable(GL_DEPTH_TEST);
float fw = (float)w;
float fh = (float)h;

// Compute forward vector
float camera_forward[3] = {
    VD_FW_COS(deg2rad * camera_pitch) * VD_FW_SIN(deg2rad * camera_yaw),
    VD_FW_SIN(deg2rad * camera_pitch),
    VD_FW_COS(deg2rad * camera_pitch) * VD_FW_COS(deg2rad * camera_yaw)
};

// Normalize forward vector
float camera_forward_len = VD_FW_SQRT(
    camera_forward[0] * camera_forward[0] +
    camera_forward[1] * camera_forward[1] +
    camera_forward[2] * camera_forward[2]);

camera_forward[0] = camera_forward[0] / camera_forward_len;
camera_forward[1] = camera_forward[1] / camera_forward_len;
camera_forward[2] = camera_forward[2] / camera_forward_len;

float camera_ref_up[3] = {0.f, 1.f, 0.f};

// Compute right vector by taking the cross product of foward x up
float camera_right[3] = {
    camera_forward[1] * camera_ref_up[2] - camera_forward[2] * camera_ref_up[1],
    camera_forward[2] * camera_ref_up[0] - camera_forward[0] * camera_ref_up[2],
    camera_forward[0] * camera_ref_up[1] - camera_forward[1] * camera_ref_up[0],
};

// Normalize right vector
float camera_right_len = VD_FW_SQRT(
    camera_right[0] * camera_right[0] +
    camera_right[1] * camera_right[1] +
    camera_right[2] * camera_right[2]);

camera_right[0] = camera_right[0] / camera_right_len;
camera_right[1] = camera_right[1] / camera_right_len;
camera_right[2] = camera_right[2] / camera_right_len;

glViewport(0, 0, w, h - 30);
glUseProgram(program3d);
glBindVertexArray(VAO3D);

float projection[16] = {0.f};
vd_fw_u_perspective(60.f, fw / fh, 0.1f, 100.0f, projection);

float view[16] = {0.f};
float ctar[3] = {
    camera_position[0] + camera_forward[0],
    camera_position[1] + camera_forward[1],
    camera_position[2] + camera_forward[2]};
float cup[3]  = {0.f, 1.f, 0.f};
vd_fw_u_lookat(camera_position, ctar, cup, view);

glActiveTexture(GL_TEXTURE0);
glBindTexture(GL_TEXTURE_2D, texture);

glUseProgram(program3d);
glUniformMatrix4fv(glGetUniformLocation(program3d, "projection"), 1, GL_FALSE, projection);
glUniformMatrix4fv(glGetUniformLocation(program3d, "view"), 1, GL_FALSE, view);
glUniform1i(glGetUniformLocation(program3d, "texture1"), 0);

glBindVertexArray(VAO3D);

glDrawArrays(GL_TRIANGLES, 0, 36);


And here we have a 3d cube! As you can see, I've already added the movement of the camera for demonstration purposes, but we'll have a look at input in the next section.

Handle Input

We've already seen some mouse state handling, but let's look at the main functions used for input:

• vd_fw_delta_s, to get delta time since last frame
• vd_fw_get_mouse_state, to read the mouse state
• vd_fw_get_mouse_delta, to read how much the mouse moved since last frame
• vd_fw_get_key_down, to check if a key is currently down
• vd_fw_get_key_pressed, to check if a key was just pressed
• vd_fw_set_mouse_locked, to hide and confine the mouse to the window

So let's add some camera manipulation, we'll start by getting the delta time in seconds:

float ds = vd_fw_delta_s();


It's also common to lock the mouse and hide it, so let's do that as well at the start of the application:

vd_fw_set_mouse_locked(1);


Here's also the snippet moving the camera:

// Get key states
float fwdir = (float)(vd_fw_get_key_down('W') - vd_fw_get_key_down('S'));
float rgdir = (float)(vd_fw_get_key_down('A') - vd_fw_get_key_down('D'));
float updir = (float)(vd_fw_get_key_down('Q') - vd_fw_get_key_down('E'));

// Compute overall move direction
float camera_move_dir[3] = {
    fwdir * camera_forward[0] + rgdir * camera_right[0] + updir * camera_ref_up[0],
    fwdir * camera_forward[1] + rgdir * camera_right[1] + updir * camera_ref_up[1],
    fwdir * camera_forward[2] + rgdir * camera_right[2] + updir * camera_ref_up[2],
};

// Normalize move direction, if it's length is not too small (i.e. we're not pressing any keys)
float camera_dir_lensq =
    camera_move_dir[0] * camera_move_dir[0] +
    camera_move_dir[1] * camera_move_dir[1] +
    camera_move_dir[2] * camera_move_dir[2];

if (camera_dir_lensq > 0.0001f) {
    // Normalize move direction and apply it to the camera's position
    float camera_move_dir_len = VD_FW_SQRT(camera_dir_lensq);

    camera_move_dir[0] = camera_move_dir[0] / camera_move_dir_len;
    camera_move_dir[1] = camera_move_dir[1] / camera_move_dir_len;
    camera_move_dir[2] = camera_move_dir[2] / camera_move_dir_len;

    camera_position[0] += camera_move_dir[0] * camera_speed * ds;
    camera_position[1] += camera_move_dir[1] * camera_speed * ds;
    camera_position[2] += camera_move_dir[2] * camera_speed * ds;
}


Finally, inside of our rendering loop, we compute the camera's pitch and yaw based on the mouse delta:

if (vd_fw_get_mouse_locked()) {
    float mouse_delta_x, mouse_delta_y;
    vd_fw_get_mouse_delta(&mouse_delta_x, &mouse_delta_y);

    camera_yaw   += mouse_delta_x;
    camera_pitch -= mouse_delta_y;
};

if (camera_pitch < -89.9f) camera_pitch = -89.9f;
if (camera_pitch > +89.9f) camera_pitch = +89.9f;

if (camera_yaw > +360.f) camera_yaw -= 360.f;
if (camera_yaw < -360.f) camera_yaw += 360.f;

float camera_forward[3] = {
    VD_FW_COS(deg2rad * camera_pitch) * VD_FW_SIN(deg2rad * camera_yaw),
    // ..


Okay, we can move the cube, but we can't really exit the application easily, since the mouse is confined. Let's make 'Shift + F1' unlock the mouse:

if (vd_fw_get_key_pressed(VD_FW_KEY_F1) && vd_fw_get_key_down(VD_FW_KEY_LSHIFT)) {
    vd_fw_set_mouse_locked(!vd_fw_get_mouse_locked());
}


And we finally have a resizable, draggable window with our own custom button and cube.

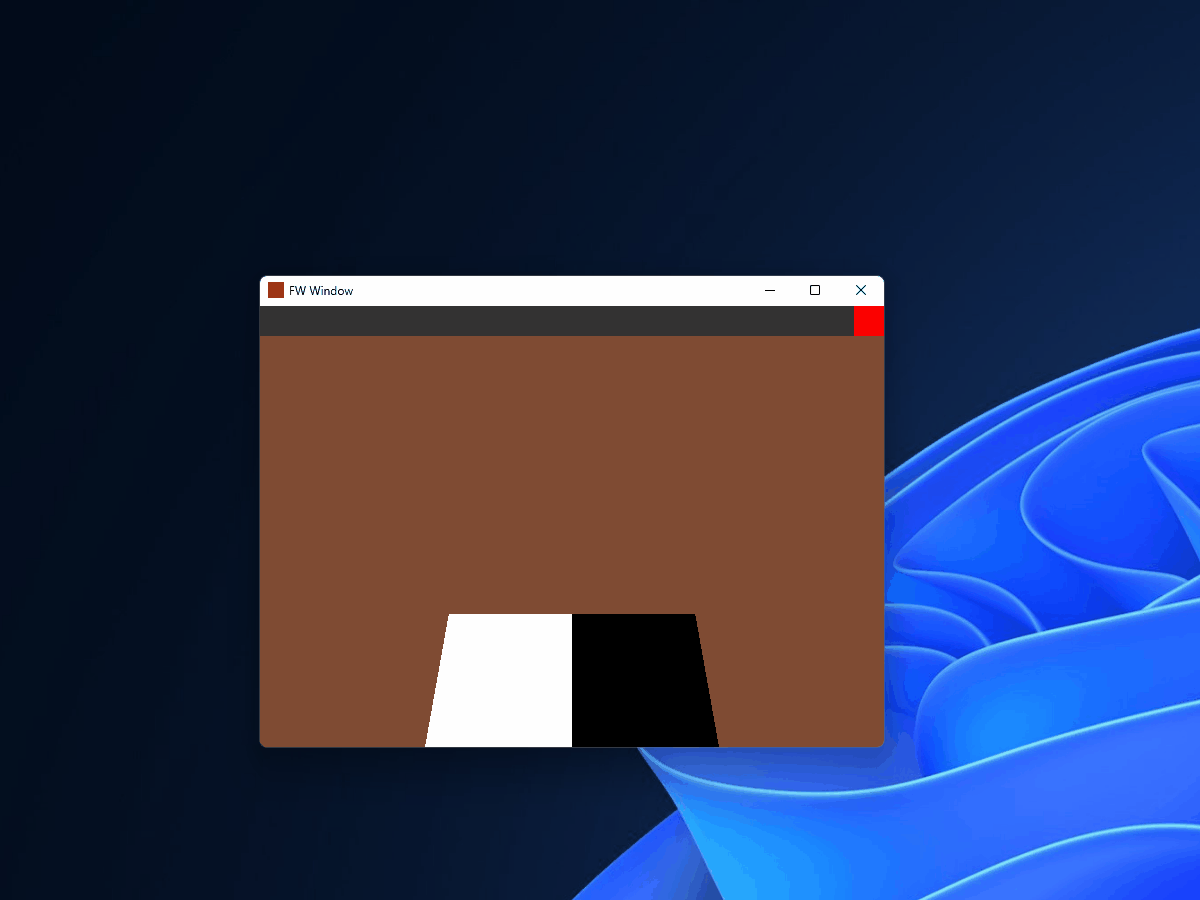

Set the Window Icon

To set the window icon, call:

// Image format must be in ARGB little-endian (i.e 0xAARRGGBB)
vd_fw_set_app_icon(pixels, width, height);


If you're following along with the tutorial, we will temporarily change the window to have decorations, so that we can see the icon drawn by Windows in the caption:

vd_fw_init(& (VdFwInitInfo) {
    .gl = {
        .version = VD_FW_GL_VERSION_3_3,
        .debug_on = 0,
    },
    .window_options = {
        .borderless = 0, // <---
    }
});


Let's draw a simple red-ish gradient from top to bottom, and set that as our icon:

unsigned int icon_pixels[32*32];
for (int y = 0; y < 32; ++y) {
    for (int x = 0; x < 32; ++x) {

        float t = ((float)(y * 32 + x)) / (32.f * 32.f);

        t = (VD_FW_SIN(t * 2) + 1.0f) * 0.5f;

        float r = 0.7f * t;
        float g = 0.2f * t;
        float b = 0.0f * t;

        icon_pixels[y * 32 + x] = 0xFF << 24                       |
                                  ((unsigned char)(r * 255)) << 16 |
                                  ((unsigned char)(g * 255)) <<  8 |
                                  ((unsigned char)(b * 255)) <<  0;
    }
}
vd_fw_set_app_icon(icon_pixels, 32, 32);


On Windows, the icon will also be shown in:

• The App Bar (Taskbar), and
• The Window switcher (Alt + Tab)

Minimize and Maximize the Window

Let's add 2 more buttons for minimizing and maximizing the window:

{
    float button_color[4] = {0.7f, 0.7f, 0.7f, 1.0f};
    int mouse_inside_maximize_button =
        (mx > ((float)w - 30.f * 2.f)) && (mx < ((float)w - 30.f)) &&
        (my > (0.f) && my < (30.f));

    if (mouse_inside_maximize_button) {
        button_color[0] = 0.9f;
        button_color[1] = 0.9f;
        button_color[2] = 0.9f;
        button_color[3] = 1.0f;
    }

    glUniform4f(glGetUniformLocation(program, "rect_color"), button_color[0], button_color[1], button_color[2], button_color[3]);
    glUniform2f(glGetUniformLocation(program, "rect_size"), 20.f, 20.f);
    glUniform2f(glGetUniformLocation(program, "rect_off"), (float)w - 30.f * 2.f, 5.f);
    glDrawArrays(GL_TRIANGLE_STRIP, 0, 4);
}

{
    float button_color[4] = {0.7f, 0.7f, 0.7f, 1.0f};
    int mouse_inside_minimize_button =
        (mx > ((float)w - 30.f * 3.f)) && (mx < ((float)w - 30.f * 2.f)) &&
        (my > (0.f) && my < (30.f));

    if (mouse_inside_minimize_button) {
        button_color[0] = 0.9f;
        button_color[1] = 0.9f;
        button_color[2] = 0.9f;
        button_color[3] = 1.0f;
    }

    glUniform4f(glGetUniformLocation(program, "rect_color"), button_color[0], button_color[1], button_color[2], button_color[3]);
    glUniform2f(glGetUniformLocation(program, "rect_size"), 20.f, 5.f);
    glUniform2f(glGetUniformLocation(program, "rect_off"), (float)w - 30.f * 3.f, 20.f);
    glDrawArrays(GL_TRIANGLE_STRIP, 0, 4);
}


And to implement the buttons:

if (mouse_inside_maximize_button && vd_fw_get_mouse_clicked(VD_FW_MOUSE_BUTTON_LEFT)) {
    int is_maximized;
    vd_fw_get_maximized(&is_maximized);
    if (is_maximized) {
        vd_fw_normalize();
    } else {
        vd_fw_maximize();
    }
}

if (mouse_inside_minimize_button && vd_fw_get_mouse_clicked(VD_FW_MOUSE_BUTTON_LEFT)) {
    vd_fw_minimize();
}


Finally, we have a window that can be maximized and minized with customizable buttons.

Use the Discrete GPU

The OpenGL specification makes no distinction between the presence of multiple GPUs inside the target system; one will be automatically selected based on vendor preference settings host OS, and other factors that the developer will not be able to affect.

However, for most systems there is a way to tell the OS at least what kind of GPU the application prefers. This library can be instructed to do that through using:

#define VD_FW_PREFER_DISCRETE_GPU    // Prefer D-GPU
// Or
#define VD_FW_PREFER_INTEGRATED_GPU  // Prefer I-GPU (The one inside your CPU)


Of course, this doesn't mean that your target application will only use the GPU type you specified, but it will signal to whatever system decides this that the application prefers that type of GPU.

There are many more technicalities, the most important of which to know is: The OpenGL backend will change/swap GPUs if run on an Optimus, or other kind of laptop that features GPU switching. It will also change (depending on the operating system, version, etc.), if the window enters a full-screen state.

Most of these 2 GPU devices are high end gaming laptops, which use the integrated GPU for low priority tasks, such as the web browser, and keep the discrete GPU turned off until a demanding task, like a game needs it.

My suggestion is:

• For GUI applications:
  Don't set any GPU preference. These apps are supposed to use few system resources anyway. This should guarantee that resizing, going fullscreen, etc.. will match the display context to the currently used one by other applications.
• For games:
  Always use the discrete GPU, since those are the ones that implement the most OpenGL extensions, as well as the fastest ones. But be aware that initial startup time (especially on gaming laptops with 2 GPUs), will be affected.

Add Gamepad Support

This library can provide Gamepad input as well as basic rumble for common (lo/hi) motors. In this section, we'll add some basic code to our existing cube program to move the camera using the gamepad.

Starting from the part where we were getting the Forward and Right input directions:

float fwdir = (float)(vd_fw_get_key_down('W') - vd_fw_get_key_down('S'));
float rgdir = (float)(vd_fw_get_key_down('A') - vd_fw_get_key_down('D'));
float updir = (float)(vd_fw_get_key_down('Q') - vd_fw_get_key_down('E'));

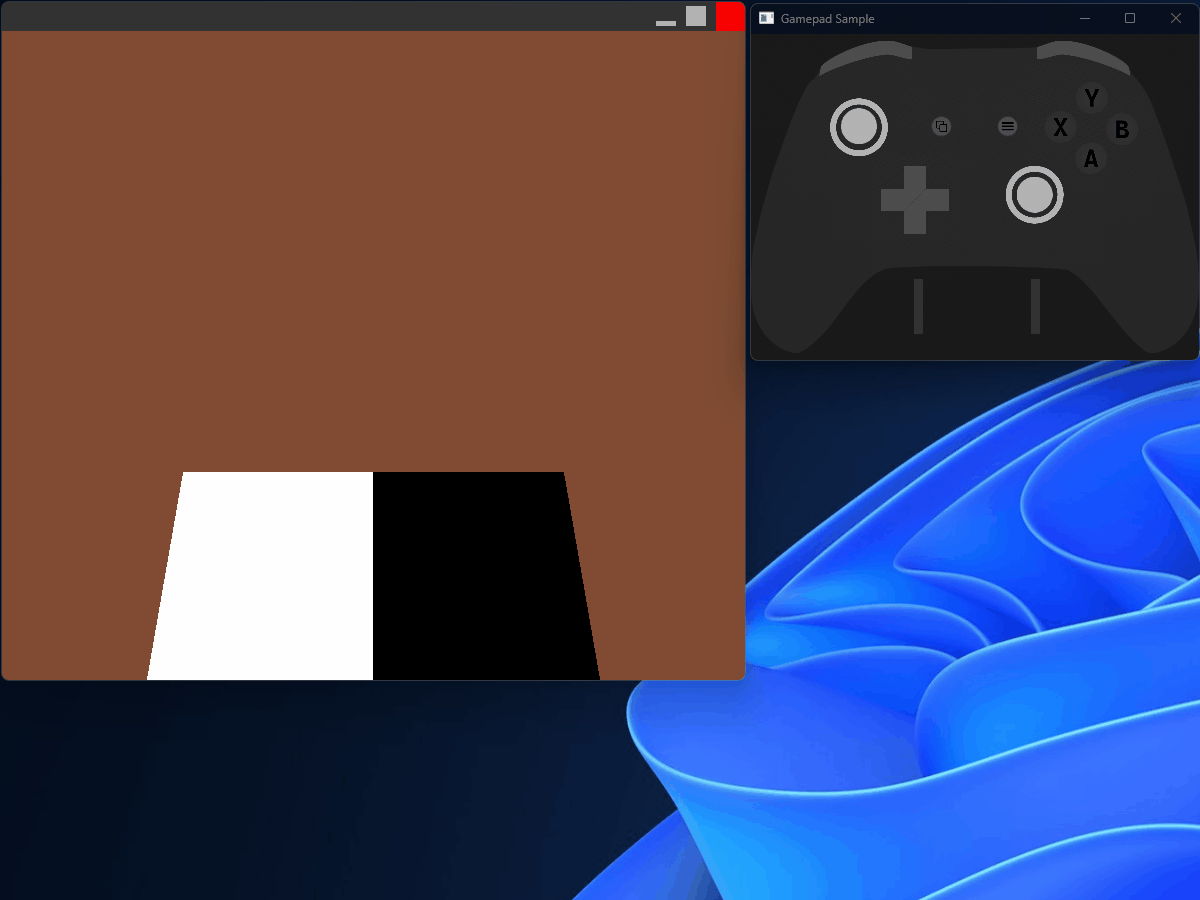

Let's modify the code to also get input from the gamepad:

float fwdir = 0.f;
float rgdir = 0.f;
float updir = 0.f;

fwdir = (float)(vd_fw_get_key_down('W') - vd_fw_get_key_down('S'));
rgdir = (float)(vd_fw_get_key_down('A') - vd_fw_get_key_down('D'));
updir = (float)(vd_fw_get_key_down('Q') - vd_fw_get_key_down('E'));

if (vd_fw_get_gamepad_count() > 0) {

    float left_stick[2];
    vd_fw_get_gamepad_axis(0, VD_FW_GAMEPAD_LV, &left_stick[0]);
    vd_fw_get_gamepad_axis(0, VD_FW_GAMEPAD_LH, &left_stick[1]);

    fwdir -= left_stick[0];
    rgdir -= left_stick[1];
}

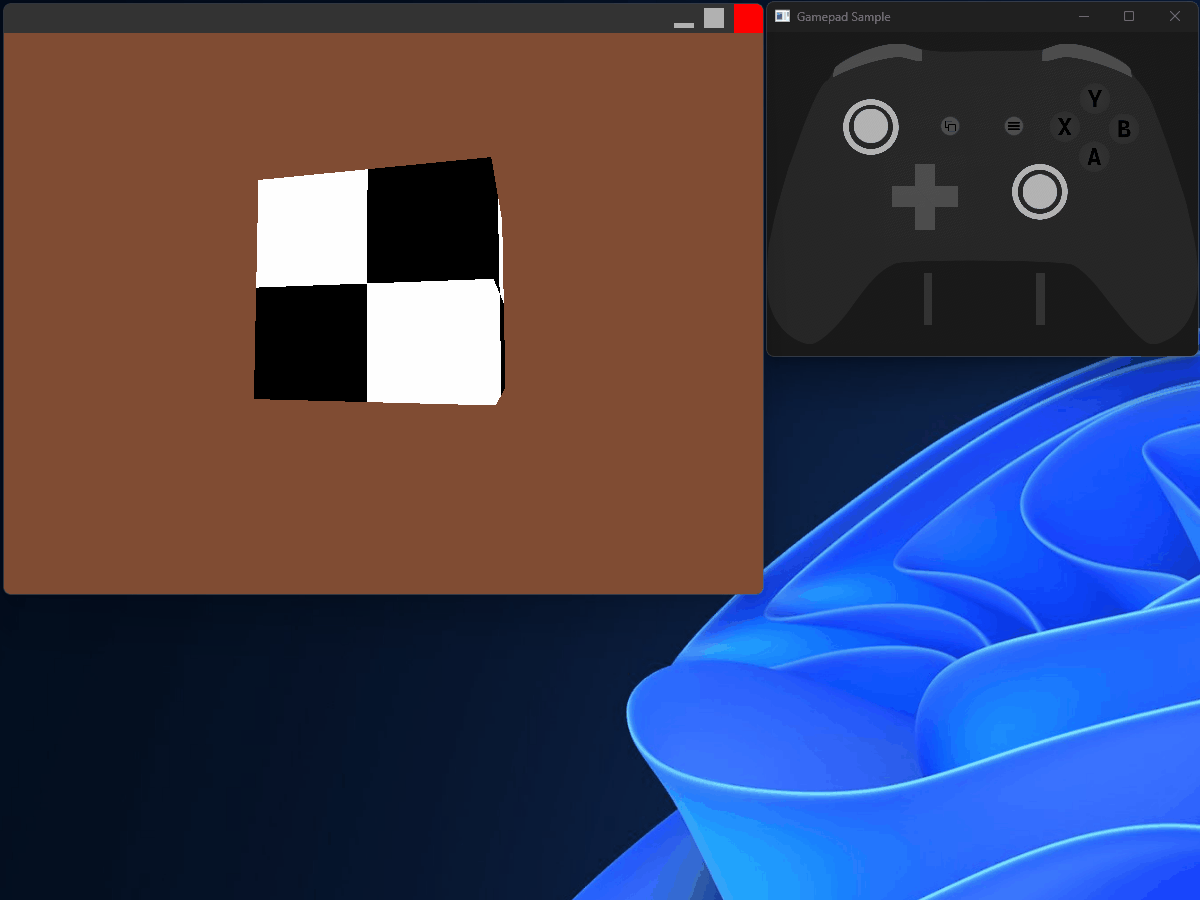

And now let's continue with using the right stick to manipulate the look direction:

// Here we ignore gamepad input if mouse is locked
if (vd_fw_get_mouse_locked()) {
    float mouse_delta_x, mouse_delta_y;
    vd_fw_get_mouse_delta(&mouse_delta_x, &mouse_delta_y);

    camera_yaw   += mouse_delta_x;
    camera_pitch -= mouse_delta_y;
} else if (vd_fw_get_gamepad_count() > 0) {
    float right_stick[2];
    vd_fw_get_gamepad_axis(0, VD_FW_GAMEPAD_RH, &right_stick[0]);
    vd_fw_get_gamepad_axis(0, VD_FW_GAMEPAD_RV, &right_stick[1]);
    camera_yaw   += right_stick[0] * ds * 100.f;
    camera_pitch -= right_stick[1] * ds * 100.f;
}


We could go on with mapping up/down to triggers, but I think you get the idea.

Of course, some controllers with either stick drift or very sensitive sticks may result in our camera moving even if we're not touching the controller. This is handled by implementing deadzones. This library will not do that for you, as radial input mapping can be very dependent on the use case of the application. But let's go through a simple linear deadzone mapping.

We will create a function that will map raw stick input to the appropriate value using a deadzone:

static void map_stick_deadzone(float input[2], float deadzone, float output[2])
{
    output[0] = output[1] = 0.f;

    float magnitude = VD_FW_SQRT(input[0] * input[0] + input[1] * input[1]);
    if ((magnitude <= 0.000001f) || (magnitude < deadzone)) {
        return;
    }

    float norm_x = input[0] / magnitude;
    float norm_y = input[1] / magnitude;

    float norm_magnitude = (magnitude - deadzone) / (1.f - deadzone);
    if (norm_magnitude > 1.f) norm_magnitude = 1.f;

    output[0] = norm_x * norm_magnitude;
    output[1] = norm_y * norm_magnitude;
}


Given a 'deadzone' parameter between 0 and 1, we map the input from [deadzone, 1] to our space, and ignore anything less that the deadzone.

Let's change the code in our input handling. In our processing of the right stick (camera rotation):

float right_stick_raw[2];
float right_stick[2];
vd_fw_get_gamepad_axis(0, VD_FW_GAMEPAD_RH, &right_stick_raw[0]);
vd_fw_get_gamepad_axis(0, VD_FW_GAMEPAD_RV, &right_stick_raw[1]);

map_stick_deadzone(right_stick_raw, DEADZONE_STICK, right_stick);

camera_yaw   += right_stick[0] * ds * 100.f;
camera_pitch -= right_stick[1] * ds * 100.f;


And we follow the same pattern for the left stick for camera movement:

float left_stick_raw[2];
float left_stick[2];
vd_fw_get_gamepad_axis(0, VD_FW_GAMEPAD_LV, &left_stick_raw[0]);
vd_fw_get_gamepad_axis(0, VD_FW_GAMEPAD_LH, &left_stick_raw[1]);

map_stick_deadzone(left_stick_raw, DEADZONE_STICK, left_stick);

fwdir -= left_stick[0];
rgdir -= left_stick[1];


Switching Graphics APIs

Apart from OpenGL, this library allows you to use other Graphics APIs. This is done by specifying the graphics API VdFwInitInfo::api.

Options:

• OpenGL (default): VD_FW_GRAPHICS_API_OPENGL
• Custom: VD_FW_GRAPHICS_API_CUSTOM
• Software Rendering (in progress): VD_FW_GRAPHICS_API_PIXEL_BUFFER

Additionally, you can switch graphics APIs at runtime using vd_fw_set_graphics_api:

vd_fw_set_graphics_api(VD_FW_GRAPHICS_API_CUSTOM, NULL);


A sample is provided here. Currently it switches between OpenGL and DirectX11 using the spacebar. Each graphics API will then draw a simple texture at the center of the screen to indicate which is the current API it's using:

Following is a basic overview of the code. We start with an interface struct that has function pointers that each graphics backend must support. In a real project, this would either be your RHI definitions, or the functions needed to render your scene.

typedef struct {
    GraphicsBackend backend;
    void (*init)(void *internal_window_handle);
    void (*kill)(void);
    void (*resize)(int w, int h);
    void (*draw_with_background_color)(float r, float g, float b, float a);
} GraphicsBackendImpl;

static VdFwGraphicsApi cv_graphics_backend_to_fw_graphics_api(GraphicsBackend backend)
{
    switch (backend) {
        case GRAPHICS_BACKEND_OPENGL: return VD_FW_GRAPHICS_API_OPENGL;
        default: return VD_FW_GRAPHICS_API_CUSTOM;
    }
}

Next, each implementation is declared, and an array of graphics backends is written depending on what the build target supports:

extern GraphicsBackendImpl OpenGL_Impl;
#ifdef _WIN32
extern GraphicsBackendImpl D3D11_Impl;
#endif

static GraphicsBackendImpl* Graphics_Backends[] = {
    &OpenGL_Impl,
#ifdef _WIN32
    &D3D11_Impl,
#endif
};


Afterwards, we make a function that will destroy the current API's context objects, and initialize the new API:

static void switch_to_graphics_backend(GraphicsBackendImpl *impl)
{
    if (Current_Graphics != NULL) {
        printf("Switching from %s to %s\n",
               graphics_backend_to_string(Current_Graphics->backend),
               graphics_backend_to_string(impl->backend));

        Current_Graphics->kill();
    } else {
        printf("Starting with %s\n",
               graphics_backend_to_string(impl->backend));
    }

    Current_Graphics = impl;
    VdFwOpenGLOptions options;
    options.version = VD_FW_GL_VERSION_4_5;
    options.debug_on = 1;
    vd_fw_set_graphics_api(cv_graphics_backend_to_fw_graphics_api(impl->backend), &options);

    impl->init(vd_fw_get_internal_window_handle());
}


We can set VdFwInitInfo::api to VD_FW_GRAPHICS_API_INVALID so that no initialization is attempted during vd_fw_init, and right after call our function to switch the backend so as to have everything following the same codepath:

VdFwInitInfo init_info = {};
init_info.api = VD_FW_GRAPHICS_API_INVALID;
vd_fw_init(&init_info);

switch_to_graphics_backend(Graphics_Backends[current_backend_index]);


In the game loop, we check for the event that will cause the graphics API to change, and after vd_fw_swap_buffers, we switch our graphics context:

int will_switch_to_next_backend = 0;
if (vd_fw_get_key_pressed(VD_FW_KEY_SPACE)) {
    will_switch_to_next_backend = 1;
}

vd_fw_swap_buffers(); // <--- IMPORTANT: vd_fw_set_graphics_api must not be called between vd_fw_running and vd_fw_swap_buffers.

if (will_switch_to_next_backend) {
    current_backend_index += 1;
    if (current_backend_index >= count_backends) {
        current_backend_index = 0;
    }

    switch_to_graphics_backend(Graphics_Backends[current_backend_index]);
}


The rest of the code is typical graphics programming stuff (setting up buffers, textures rendering context).

Gamepads

Doing low-level gamepad input is not as easy as one would think (and maybe I should write a separate article detailing my investigation into which APIs this library should use and how), but I will briefly mention the APIs used on a per platform basis:

For each platform, an index of buttons, axes and pov hats is computed based on the HID parser library used by that platform. This is not guaranteed to be consistent between platforms, and as such the same mappings for every HID must be specified for all target platforms.

As a model of the controller, the XBOX Controller is used to assign a symbolic meaning to button indicies in a way that is intuitive for the developer. Additionally, several buttons aside from the XBOX ones are defined: auxiliary buttons (AUX0, AUX1, ...) and paddle buttons (LEFT_PADDLE0, RIGHT_PADDLE0, ...).

Controller mappings are defined via a gamepad database named RGCDB (with the appropriate file extension). An example of a gamepad mapping entry is provided below:

0300d0424c050000cc09000000017200,Sony DualShock 4,a:b1,b:b2,x:b0,y:b3,leftx:a2,lefty:a3,rightx:a4,righty:a7,lefttrigger:a5,righttrigger:a6,leftshoulder:b4,rightshoulder:b5,back:b8,start:b9,dpup:h0.1,dpright:h0.2,dpdown:h0.4,dpleft:h0.8,leftstick:b10,rightstick:b11,rumble:w05ff0000llhh,face:playstation,class:xbox,platform:Windows,


Compared to gamecontrollerdb.txt, the following additions were made:

• class: The classification of a controller; used to determine its capabilities
• face: The face style of a controller; the symbols for inputs present on the actual hardware
• rumble: Several directives that instruct this library on how to send rumble input

The classification of the controller is an enumeration that tries to tell the developer what kind of inputs the controller is capable of (or at least reports). They are listed below:

enum {
    VD_FW_GAMEPAD_CLASS_INVALID = 0,
    // class:nes          | 1 PoV, 2 Control, 2 System
    VD_FW_GAMEPAD_CLASS_NES,
    // class:megadrive    | 1 PoV, 3 Control, 1 System
    VD_FW_GAMEPAD_CLASS_MEGADRIVE,
    // class:genesis      | 1 PoV, 6 Control, 2 System
    VD_FW_GAMEPAD_CLASS_GENESIS,
    // class:snes         | 1 PoV, 4 Control, 2 System, 2 Symmetrical
    VD_FW_GAMEPAD_CLASS_SNES,
    // class:ps1          | 1 PoV, 4 Control, 2 System, 4 Symmetrical
    VD_FW_GAMEPAD_CLASS_PS1,
    // class:joycon       |        4 Control, 2 System, 2 Symmetrical, 1 Clickable Stick
    VD_FW_GAMEPAD_CLASS_JOYCON,
    // class:n64          | 1 PoV, 6 Control, 2 System, 2 Symmetrical, 1 Stick
    VD_FW_GAMEPAD_CLASS_N64,
    // class:ps2          | 1 PoV, 4 Control, 2 System, 4 Symmetrical, 2 Clickable Sticks
    VD_FW_GAMEPAD_CLASS_PS2,
    // class:xbox         | 1 PoV, 4 Control, 2 System, 2 Symmetrical, 2 Clickable Sticks, 2 Symmetrical Axes
    VD_FW_GAMEPAD_CLASS_XBOX,
    // class:ps4          | 1 PoV, 4 Control, 2 System, 2 Symmetrical, 2 Clickable Sticks, 2 Symmetrical Axes, 1 Touchpad
    VD_FW_GAMEPAD_CLASS_PS4,
    // class:steamdeck    | 1 PoV, 4 Control, 2 System, 6 Symmetrical, 2 Clickable Sticks, 2 Symmetrical Axes, 2 Touchpads
    VD_FW_GAMEPAD_CLASS_STEAMDECK,
    VD_FW_GAMEPAD_CLASS_MAX,
};
typedef VdFwU8 VdFwGamepadClass;


The available gamepad face values indicate the styling of the buttons and axes indicated on the controller hardware. Here they are:

enum {
    VD_FW_GAMEPAD_FACE_UNKNOWN = 0,
    VD_FW_GAMEPAD_FACE_NUMBERED,    /* face:numbered */
    VD_FW_GAMEPAD_FACE_XBOX,        /* face:xbox */
    VD_FW_GAMEPAD_FACE_PLAYSTATION, /* face:playstation */
    VD_FW_GAMEPAD_FACE_NINTENDO,    /* face:nintendo */
    VD_FW_GAMEPAD_FACE_MAX,
};


On Windows, due to legacy reasons HIDs will report triggers as a single axis value and thus they cannot be both pressed at the same time, by just using raw input. To circumvent this, this library (as well as SDL and many other libraries) correlate mapped gamepad inputs with the XInput controller states to determine which "dwUserIndex" was assigned to the controller by XInput. Once that is done, the trigger values are then retrieved through that API for the remainder of the application's lifetime.

The game controller db mappings can be loaded from a text string via:

vd_fw_add_gamepad_rgcdb(const char *text, int text_len);


or:

vd_fw_add_gamepad_db_entry(VdFwGamepadDBEntry *entry);


Deadzones are not handled regarding axial inputs. This will be a separate set of functions that will filter gamepad input data, because deadzones can have different implementations based on the game's requirements.

For debugging, a sample utility program was written to test controller inputs. You can find it here. Additionally, for Windows, an HID dump utility exists here.

Input Mappings

This is a complete list of all possible input mappings supported by this library.

Alternatively, click below to open an interactive interface:

Here's all the mapped keybindings. For most of them, considerations were taken to map the values to ASCII symbols that correspond to the physical key on a US ANSI/ISO keyboard layout.

enum {
    VD_FW_KEY_UNKNOWN       = 0,
    VD_FW_KEY_F1            = 1,
    VD_FW_KEY_F2            = 2,
    VD_FW_KEY_F3            = 3,
    VD_FW_KEY_F4            = 4,
    VD_FW_KEY_F5            = 5,
    VD_FW_KEY_F6            = 6,
    VD_FW_KEY_F7            = 7,
    VD_FW_KEY_F8            = 8,
    VD_FW_KEY_F9            = 9,
    VD_FW_KEY_F10           = 10,
    VD_FW_KEY_F11           = 11,
    VD_FW_KEY_F12           = 12,
    VD_FW_KEY_F13           = 13,
    VD_FW_KEY_F14           = 14,
    VD_FW_KEY_F15           = 15,
    VD_FW_KEY_F16           = 16,
    VD_FW_KEY_F17           = 17,
    VD_FW_KEY_F18           = 18,
    VD_FW_KEY_F19           = 19,
    VD_FW_KEY_F20           = 20,
    VD_FW_KEY_F21           = 21,
    VD_FW_KEY_F22           = 22,
    VD_FW_KEY_F23           = 23,
    VD_FW_KEY_F24           = 24,
    VD_FW_KEY_BACKSPACE     = 25,
    VD_FW_KEY_INS           = 26,
    VD_FW_KEY_HOME          = 27,
    VD_FW_KEY_PGUP          = 28,
    VD_FW_KEY_DEL           = 29,
    VD_FW_KEY_END           = 30,
    VD_FW_KEY_PGDN          = 31,
    VD_FW_KEY_SPACE         = 32,  // ' '
    VD_FW_KEY_LCONTROL      = 33,
    VD_FW_KEY_RCONTROL      = 34,
    VD_FW_KEY_LALT          = 35,
    VD_FW_KEY_RALT          = 36,
    VD_FW_KEY_LSHIFT        = 37,
    VD_FW_KEY_RSHIFT        = 38,
    VD_FW_KEY_QUOTE         = 39,  // '\''
    VD_FW_KEY_ARROW_UP      = 40,
    VD_FW_KEY_ARROW_LEFT    = 41,
    VD_FW_KEY_ARROW_DOWN    = 42,
    VD_FW_KEY_ARROW_RIGHT   = 43,
    VD_FW_KEY_COMMA         = 44,  // ','
    VD_FW_KEY_MINUS         = 45,  // '-'
    VD_FW_KEY_DOT           = 46,  // '.'
    VD_FW_KEY_SLASH_FORWARD = 47,  // '/'
    VD_FW_KEY_0             = 48,  // '0'
    VD_FW_KEY_1             = 49,  // '1'
    VD_FW_KEY_2             = 50,  // '2'
    VD_FW_KEY_3             = 51,  // '3'
    VD_FW_KEY_4             = 52,  // '4'
    VD_FW_KEY_5             = 53,  // '5'
    VD_FW_KEY_6             = 54,  // '6'
    VD_FW_KEY_7             = 55,  // '7'
    VD_FW_KEY_8             = 56,  // '8'
    VD_FW_KEY_9             = 57,  // '9'
    VD_FW_KEY_ENTER         = 58,
    VD_FW_KEY_SEMICOLON     = 59,  // ';'
    VD_FW_KEY_TAB           = 60,
    VD_FW_KEY_EQUALS        = 61,  // '='
    VD_FW_KEY_CAPITAL       = 62,
    VD_FW_KEY_ESCAPE        = 63,
    VD_FW_KEY_RESERVED1     = 64,  // '@'
    VD_FW_KEY_A             = 65,  // 'A'
    VD_FW_KEY_B             = 66,  // 'B'
    VD_FW_KEY_C             = 67,  // 'C'
    VD_FW_KEY_D             = 68,  // 'D'
    VD_FW_KEY_E             = 69,  // 'E'
    VD_FW_KEY_F             = 70,  // 'F'
    VD_FW_KEY_G             = 71,  // 'G'
    VD_FW_KEY_H             = 72,  // 'H'
    VD_FW_KEY_I             = 73,  // 'I'
    VD_FW_KEY_J             = 74,  // 'J'
    VD_FW_KEY_K             = 75,  // 'K'
    VD_FW_KEY_L             = 76,  // 'L'
    VD_FW_KEY_M             = 77,  // 'M'
    VD_FW_KEY_N             = 78,  // 'N'
    VD_FW_KEY_O             = 79,  // 'O'
    VD_FW_KEY_P             = 80,  // 'P'
    VD_FW_KEY_Q             = 81,  // 'Q'
    VD_FW_KEY_R             = 82,  // 'R'
    VD_FW_KEY_S             = 83,  // 'S'
    VD_FW_KEY_T             = 84,  // 'T'
    VD_FW_KEY_U             = 85,  // 'U'
    VD_FW_KEY_V             = 86,  // 'V'
    VD_FW_KEY_W             = 87,  // 'W'
    VD_FW_KEY_X             = 88,  // 'X'
    VD_FW_KEY_Y             = 89,  // 'Y'
    VD_FW_KEY_Z             = 90,  // 'Z'
    VD_FW_KEY_BRACKET_OPEN  = 91,  // '['
    VD_FW_KEY_SLASH_BACK    = 92,  // '\\'
    VD_FW_KEY_BRACKET_CLOSE = 93,  // ']'
    VD_FW_KEY_MEDIA_NEXT    = 94,  // Media Next Track
    VD_FW_KEY_MEDIA_PREV    = 95,  // Media Prev Track
    VD_FW_KEY_BACKTICK      = 96,  // '`'
    VD_FW_KEY_MEDIA_PLAY    = 97,  // Media Play/Pause
    VD_FW_KEY_NUMPAD_0      = 98,  // Numpad 0
    VD_FW_KEY_NUMPAD_1      = 99,  // Numpad 1
    VD_FW_KEY_NUMPAD_2      = 100, // Numpad 2
    VD_FW_KEY_NUMPAD_3      = 101, // Numpad 3
    VD_FW_KEY_NUMPAD_4      = 102, // Numpad 4
    VD_FW_KEY_NUMPAD_5      = 103, // Numpad 5
    VD_FW_KEY_NUMPAD_6      = 104, // Numpad 6
    VD_FW_KEY_NUMPAD_7      = 105, // Numpad 7
    VD_FW_KEY_NUMPAD_8      = 106, // Numpad 8
    VD_FW_KEY_NUMPAD_9      = 107, // Numpad 9
    VD_FW_KEY_MAX,
};


For the mouse, the following bit masks may be used:

enum {
    VD_FW_MOUSE_STATE_LEFT_BUTTON_DOWN   = 1 << 0,
    VD_FW_MOUSE_STATE_RIGHT_BUTTON_DOWN  = 1 << 1,
    VD_FW_MOUSE_STATE_MIDDLE_BUTTON_DOWN = 1 << 2,
    VD_FW_MOUSE_STATE_M1_BUTTON_DOWN     = 1 << 3,
    VD_FW_MOUSE_STATE_M2_BUTTON_DOWN     = 1 << 4,

    VD_FW_MOUSE_BUTTON_LEFT   = VD_FW_MOUSE_STATE_LEFT_BUTTON_DOWN,
    VD_FW_MOUSE_BUTTON_RIGHT  = VD_FW_MOUSE_STATE_RIGHT_BUTTON_DOWN,
    VD_FW_MOUSE_BUTTON_MIDDLE = VD_FW_MOUSE_STATE_MIDDLE_BUTTON_DOWN,
    VD_FW_MOUSE_BUTTON_M1     = VD_FW_MOUSE_STATE_M1_BUTTON_DOWN,
    VD_FW_MOUSE_BUTTON_M2     = VD_FW_MOUSE_STATE_M2_BUTTON_DOWN,
};


This library supports at most 32 gamepad buttons and 6 axes (as of writing), as well as a game controller mapping database akin to gamecontrollerdb.txt. Regarding HIDs, it supports any amount of buttons, axes and PoV hats, but only 64 buttons, 6 axes and 1 PoV hat can be mapped right now. This is subject to change.

The following buttons can be mapped:

enum {
    // XBox Style Buttons
    VD_FW_GAMEPAD_UNKNOWN = 0,
    VD_FW_GAMEPAD_A,
    VD_FW_GAMEPAD_B,
    VD_FW_GAMEPAD_X,
    VD_FW_GAMEPAD_Y,
    VD_FW_GAMEPAD_DUP,
    VD_FW_GAMEPAD_DDOWN,
    VD_FW_GAMEPAD_DLEFT,
    VD_FW_GAMEPAD_DRIGHT,
    VD_FW_GAMEPAD_START,
    VD_FW_GAMEPAD_BACK,
    VD_FW_GAMEPAD_LEFT_SHOULDER,
    VD_FW_GAMEPAD_RIGHT_SHOULDER,
    VD_FW_GAMEPAD_LEFT_STICK,
    VD_FW_GAMEPAD_RIGHT_STICK,
    VD_FW_GAMEPAD_LEFT_PAD0,
    VD_FW_GAMEPAD_RIGHT_PAD0,
    VD_FW_GAMEPAD_LEFT_PAD1,
    VD_FW_GAMEPAD_RIGHT_PAD1,
    VD_FW_GAMEPAD_LEFT_PAD2,
    VD_FW_GAMEPAD_RIGHT_PAD2,
    VD_FW_GAMEPAD_AUX0,
    VD_FW_GAMEPAD_AUX1,
    VD_FW_GAMEPAD_AUX2,
    VD_FW_GAMEPAD_AUX3,
    VD_FW_GAMEPAD_AUX4,
    VD_FW_GAMEPAD_AUX5,
    VD_FW_GAMEPAD_AUX6,
    VD_FW_GAMEPAD_AUX7,
    VD_FW_GAMEPAD_AUX8,
    VD_FW_GAMEPAD_AUX9,
    VD_FW_GAMEPAD_BUTTON_MAX,

    // Playstation Style Buttons
    VD_FW_GAMEPAD_CROSS    = VD_FW_GAMEPAD_A,
    VD_FW_GAMEPAD_CIRCLE   = VD_FW_GAMEPAD_B,
    VD_FW_GAMEPAD_SQUARE   = VD_FW_GAMEPAD_X,
    VD_FW_GAMEPAD_TRIANGLE = VD_FW_GAMEPAD_Y,
    VD_FW_GAMEPAD_SELECT   = VD_FW_GAMEPAD_BACK,
    VD_FW_GAMEPAD_L1       = VD_FW_GAMEPAD_LEFT_SHOULDER,
    VD_FW_GAMEPAD_R1       = VD_FW_GAMEPAD_RIGHT_SHOULDER,
    VD_FW_GAMEPAD_L3       = VD_FW_GAMEPAD_LEFT_STICK,
    VD_FW_GAMEPAD_R3       = VD_FW_GAMEPAD_RIGHT_STICK,

    VD_FW_GAMEPAD_H = 0 >> 1,
    VD_FW_GAMEPAD_V = 2 >> 1,
    VD_FW_GAMEPAD_L = 0 << 1,
    VD_FW_GAMEPAD_R = 1 << 1,
    VD_FW_GAMEPAD_LH = VD_FW_GAMEPAD_L | VD_FW_GAMEPAD_H,
    VD_FW_GAMEPAD_LV = VD_FW_GAMEPAD_L | VD_FW_GAMEPAD_V,
    VD_FW_GAMEPAD_RH = VD_FW_GAMEPAD_R | VD_FW_GAMEPAD_H,
    VD_FW_GAMEPAD_RV = VD_FW_GAMEPAD_R | VD_FW_GAMEPAD_V,
    VD_FW_GAMEPAD_L2 = 4,
    VD_FW_GAMEPAD_R2 = 5,
    VD_FW_GAMEPAD_LT = VD_FW_GAMEPAD_L2,
    VD_FW_GAMEPAD_RT = VD_FW_GAMEPAD_R2,
    VD_FW_GAMEPAD_AXIS_MAX,
};
